    920-925MHz -12dBm 128 EPC RFID Hard Tag For Medical Device

    Ask Lasest Price
    Brand Name : broadradio
    Model Number : BRT-38
    Price : Negotiable
    Payment Terms : T/T,PayPal
    Delivery Time : 3-5works
    • Product Details
    • Company Profile

    920-925MHz -12dBm 128 EPC RFID Hard Tag For Medical Device

    BRT-38 920 - 925 MHz -12dBm Sensitivity RFID Hard Tag for Metal asse/medical device/tool

    Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.

    product description

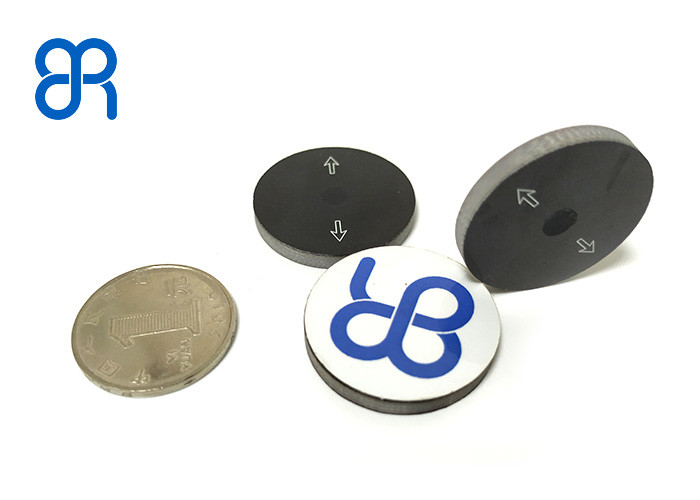

    BRT-38 PCB anti-metal tag/label designed and manufactured by Broadradio is a label specially designed for complex environments such as metal. It has a circular design, long reading distance, high sensitivity, small size and convenient installation. It is especially suitable for various metals. The environment can be conveniently applied to metal asset equipment management, gun management, medical device management and other occasions.


    Performance Features
    Frequency range:920 - 925 MHz
    Sensitivity:-12dBm (reference distance 3M)
    Chip:Impinj Monza R6-P
    Chip protocolEPC Class-1 Gen2
    Protocol supported:ISO 18000-6C, EPC global C1Gen2
    Function:Read / Write
    Chip Features
    E P C :128-EPC
    T I D:48 bits
    Access password:32 bits
    Kill password:32 bits
    Data retention:10 years
    Write endurance:100,000 cycle
    Applications
    Metal asset equipment management, medical device management, tool management, etc.

    920-925MHz -12dBm 128 EPC RFID Hard Tag For Medical Device


    Factors affecting the reading distance of RFID electronic tags

    1. It is related to the radio frequency power of the RFID reader. If the radio frequency power is small, the reading distance will be close. On the contrary, if the power is high, the reading distance will be far;

    2. It is related to the gain of the RFID reader antenna, the gain of the reader antenna is small, the reading distance is close, anyway, the gain is high and the reading distance is long;

    3. It is related to the degree of coordination between the RFID tag and the antenna polarization direction and relative angle. The direction is consistent and the degree of coordination is high, and the reading and writing distance is far. On the contrary, if it does not cooperate, the reading distance is short;

    4. It is related to the unit attenuation of the feeder. The larger the attenuation, the closer the reading and writing distance. On the contrary, the smaller the attenuation and the longer the reading distance;

    5. It is related to the total length of the feeder connecting the reader and the antenna. The longer the feeder, the shorter the reading and writing distance. On the contrary, the shorter the feeder and the longer the reading distance.
