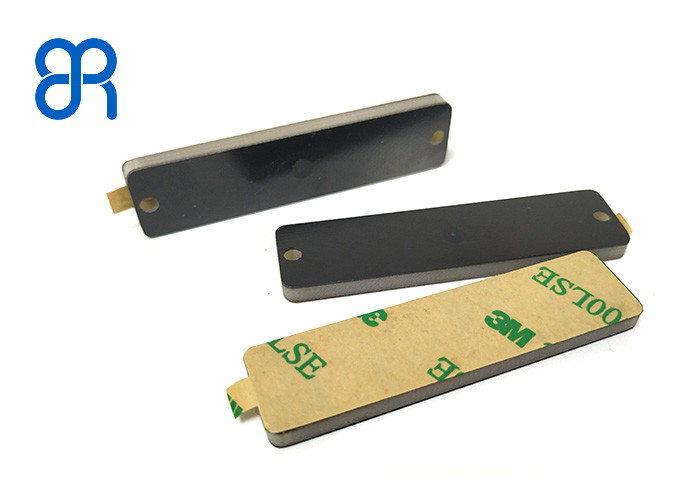

BRT-31 reference distance 8M PCB Anti-Metal Durable RFID Tags with Alien
H3 Chip
RFID anti-metal tag tags can work in high-temperature environments
with stable performance and are very suitable for IT assets with
RFID metal tags, such as computer hosts, switches, server cases,
aluminum bars and shelf identification.
The broad usage scenarios are as follows:
1. Warehouse asset management;
2. Indoor equipment management;
3. IT asset management;
4. Sheet metal management;
5. Medical device management
BRT-31 PCB Anti-Metal Tag is designed specifically for complex
metal environments. It has the advantages of large reading
distance, high sensitivity and easy to install. It is especially
suitable for a variety of metal environments, easy to use in metal
asset equipment management, gun control, medical equipment
management, logistics and etc.
| Performance Features |
| Frequency range: | 865-868MHz, 902 - 928 MHz |
| Sensitivity: | -15dBm (reference distance 8M) -17dBm (reference distance 7M) |
| Chip: | Alien H3 Monza R6-p |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features |
| E P C : | 96-EPC 128-EPC |
| Chip memory : | 512 User bits 32User bits |
| T I D: | 64 bits 48 bits |
| Access password: | 32 bits 32 bits |
| Kill password: | 32 bits 32 bits |
| Data retention: | 10 years 10 years |
| Write endurance: | 100,000 cycle 100,000 cycle |
| Mechanical Features |
| Size: | 60mm x 15mm x 3.6mm |
| Material of shell: | PCB, 3M adhesive |
| Color: | Black |
| Weight: | 6g |
| Installation method : | 3M adhesive |
| Protection class: | IP65 |
| Operating Temperature : | -20℃ to +85℃ |
| Applications |
| Logistics, tobacco, metal rack and metal goods management, gun
control, medical equipment management and etc. |
