    860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67

    BRA-02 860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67

    Product Function and Features

    1)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

    2)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

    3)BRA-02 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

    Performance Specifications

    Frequency Range860MHz~960MHz
    VSWR≤1.3:1
    Gain> 6 dBic
    H side HPBW90°
    E side HPBW90°
    PolarizationCircular Polarization
    Relative humidity5%~95%
    Impedance50±1Ω
    Connector Type

    SMA-50KFD Female


    Mechanical Specifications

    Size128mm×128mm×20mm
    Weight0.3kg (bracket excluded)
    MaterialEngineering plastics ASA, aluminum
    ColorMilk-white
    Production ClassIP67
    Operating Temperature-40℃~+ 85℃
    Storage Temperature-40℃~+ 85℃

    860-960MHz 6dBic UHF RFID antenna with small size, double waterproof design IP67

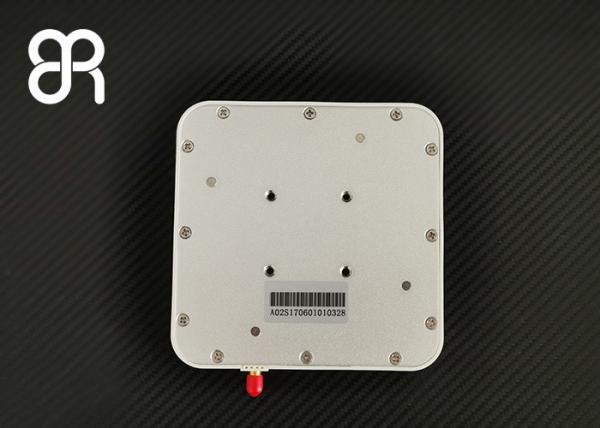

    Figure 1. Antenna Photo


    FAQ and Cautions

    BRA-02 Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

    BRA-02 Antenna can be used outdoors, but not suitable for use in acid or alkali environment.


    Antenna pattern
