    Circular Polarization UHF RFID Antenna Small Size Double Waterproof 902~928MHz

    Ask Lasest Price
    Brand Name : broadradio
    Model Number : BRA-02CR
    Price : Negotiable
    Payment Terms : T/T, PayPal
    Delivery Time : 1-3 work days
    • Product Details
    • Company Profile

    Circular Polarization UHF RFID Antenna Small Size Double Waterproof 902~928MHz

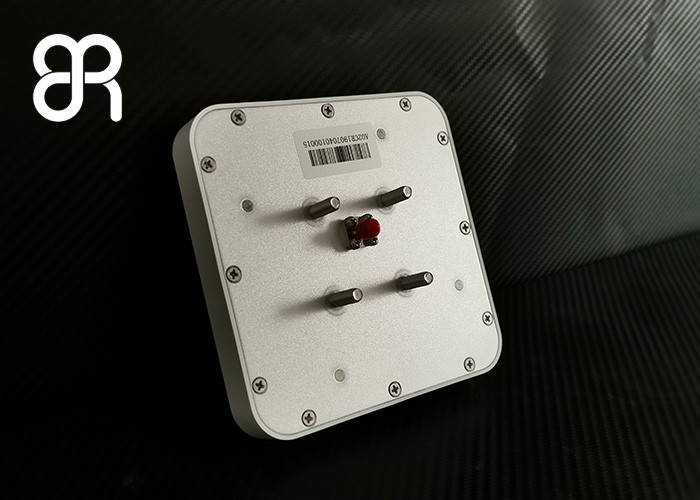

    BRA-02CR Circular Polarization UHF RFID Antenna,small size, double waterproof 902~928MHz


    Frequently asked questions and precautions

    The BRA-01CR antenna is a circularly polarized directional antenna. When using it, care should be taken to adjust the tilt angle of the antenna to obtain the best reading performance.

    The BRA-01CR antenna can be used outdoors, but it is not suitable for use in an acid/alkaline environment.


    Product Features

    1)BRA-02CR Antenna is of convenient application in automated production line management, warehousing, logistics, retail and other UHF RFID application fields.

    2)Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

    3)Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.


    Performance Specifications

    Frequency Range902MHz~928MHz(865MHz~868MHz)
    VSWR≤1.3:1
    Gain> 6 dBic
    H side HPBW105°
    E side HPBW105°
    PolarizationCircular Polarization
    Relative humidity5%~95%
    Impedance50±1Ω
    Connector TypeSMA-50KFD Female

    installation

    The BRA-02CR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.

    The antenna mount is an option and the customer can choose as needed.
