BRA-01CR Gain 9dBic Long Range RFID Antenna for access control/warehousing/logistics

Product features
1,Universal antenna for UHF band RFID applications
2,with high gain, low standing wave characteristics
3,reading distance, up to 12 meters
4,beautiful appearance, small waterproof design with waterproof ring and silicone, protection grade IP67
5,The outer shell is designed with reinforced ribs and is suitable for various harsh environments.

6,The BRA-01CR antenna can be easily used in RFID applications in UHF bands such as access control, warehousing, logistics, and asset management.

Performance Specifications

Mechanical Specifications

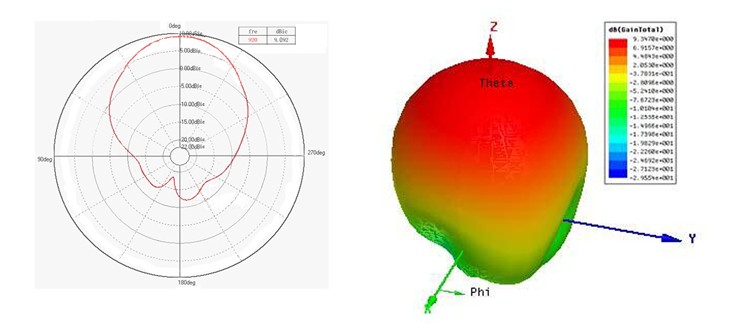

Antenna pattern

installation

The BRA-01CR antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.

The antenna mount is an option and the customer can choose as needed.

FAQ and Cautions

BRA-01CR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

BRA-01CR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
