    Auto Identified UHF RFID Portal Reader For Warehouse / Books / Archives Management

    Ask Lasest Price
    Brand Name : broadradio
    Model Number : BRC-04C
    Price : Negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Delivery Time : 3-5works
    • Product Details
    • Company Profile

    Auto Identified UHF RFID Portal Reader For Warehouse / Books / Archives Management

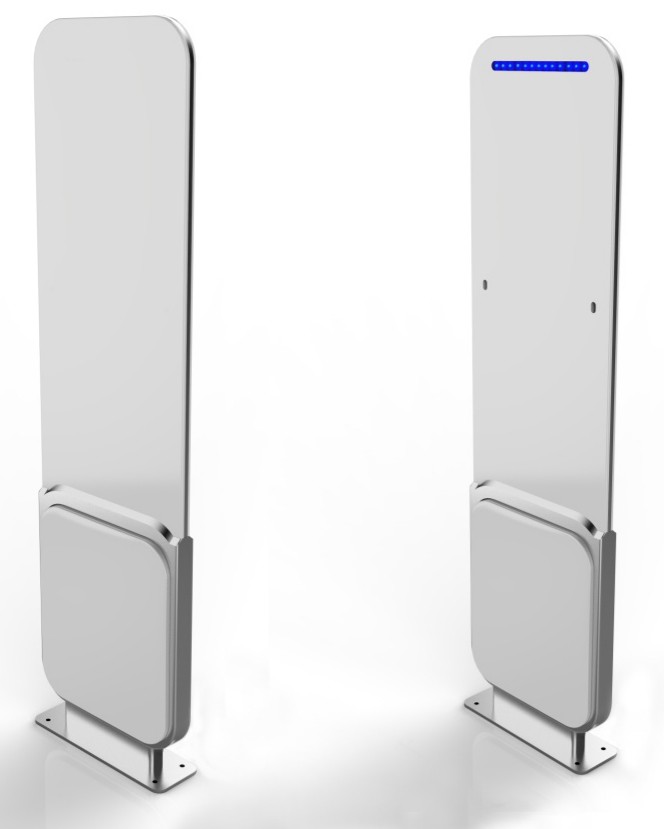

    Auto identified UHF RFID Portal Reader for warehouse/books/archives management


    UHF access control system supports EPC C1 G2 (ISO18000-6C) protocol, supports server mode to achieve multi-channel control function, comes with linux system, integrates high-gain antenna group internally, high-speed reader and control module based on ImpinjR2000, owns High-speed read tag performance and good read/write area control, standard RS232 or RJ45 interface for easy connection to software platforms. The product is especially suitable for all kinds of logistics, warehousing, books, archives, personnel attendance management.

    Auto Identified UHF RFID Portal Reader For Warehouse / Books / Archives Management

    Product Features
    • Independent intellectual property design
    • Support server mode to achieve multi-channel control
    • Support EPC C1 G2(ISO18000-6C)protocol
    • Frequency 902~928MHz(or customized 865~868MHz)
    • Output power 30dbm(adjustable)
    • Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode
    • Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot
    • Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable
    • Wider RFID safe door placing distance, maximum 2.2m
    • Motion direction judgment optional (by infrared diode pair)
    • LED display optional for showing label numbers
    • New label reading prompt function optional
    • Burglar alarm function optional
    • Fashion appearance, easy assembly
    Product Specifications
    Size:

    1372×370×23mm (per pcs)

    Weight:12KG(per pcs)
    Frequency:920MHz~928MHz
    Protocol:ISO 18000-6C
    Operating Temperature:-20℃~60℃
    Storage Temperature:-30℃~70℃
    Ambient humidity:5%~95%RH no condensation
    Power Supply:AC 220V±10% 47~63 Hz
    Power Consumption:approx. 45W
    Interface:RS-232(DB9),RJ45
    Recommended width per channel:0.8~1.5m(maximum 2.5m)
    Access Control Components (N channels)
    • Rack N+1 pcs (N channels)
    • 9dBic narrow beam antennas 4*N pcs
    • Control panel and power module ≥N/2 pcs
    • Read-write module N pcs
    • RS232 serial port N pcs
    • Ethernet port N pcs
    • Exchange board >N ports
    • RF feeder 4*N pcs
    • Infrared radiation 2*N sets
    • Infrared connector 2*N sets

    Applications
    Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications.



    Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
