    0.3KG Weight Circular Polarized Antenna , Small Size Long Distance RFID Antenna

    Circular Polarization UHF RFID antenna Identify long distances with small size

    Product Model

    BRA-02SR Antenna


    Product Function and Features

    Electrical Properties: It is a general antenna for UHF RFID applications with high gain and low VSWR.

    Mechanical Properties: pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.


    Product Applications

    BRA-02SR Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

    Performance Specifications

    Frequency Range

    902MHz~928MHz(865MHz~868MHz)

    VSWR≤1.3:1
    Gain> 6 dBic
    H side HPBW105°
    E side HPBW105°
    PolarizationCircular Polarization
    Relative humidity5%~95%
    Impedance50±1Ω
    Connector Type

    SMA-50KFD Female


    Mechanical Specifications

    Size128mm×128mm×20mm
    Weight0.3kg (bracket excluded)
    MaterialEngineering plastics ASA, aluminum
    ColorMilk-white
    Production ClassIP67
    Operating Temperature-40℃~+ 85℃
    Storage Temperature-40℃~+ 85℃

    0.3KG Weight Circular Polarized Antenna , Small Size Long Distance RFID Antenna

    Figure 1. Antenna Photo


    Mounting

    BRA-02SR Antenna can be mounted on any steel frame or column with its built-in bracket or user's bracket and be connected with reader through coaxial cable. It can be installed horizontally or vertically according to the bracket's position. The antenna tilt can be adjusted according to the actual applications.

    Antenna bracket is an optional accessory and customers can choose it according to actual need.

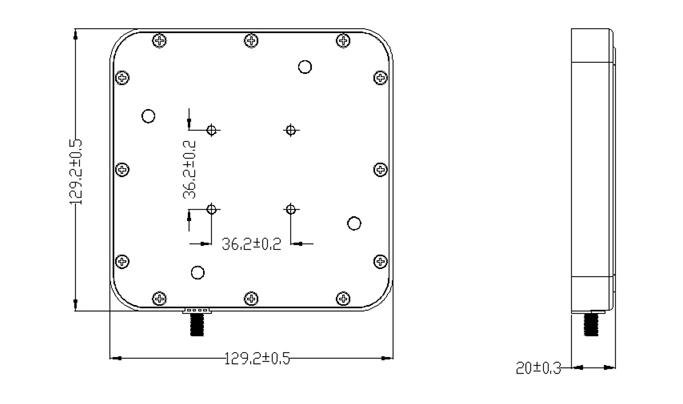

    Figure 2. Mounting Dimensions

    FAQ and Cautions

    BRA-02SR Antenna is circularly polarized directional antenna. Attention should be paid to adjusting the antenna tilt to obtain the optimal reading performance.

    BRA-02SR Antenna can be used outdoors, but not suitable for use in acid or alkali environment.
