    12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

    Ask Lasest Price
    Brand Name : broadradio
    Model Number : BRA-44
    Price : Negotiable
    Payment Terms : T/T,Paypal
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

    12dBic Linear polarization UHF RFID Antenna for Vehicle management


    Product features

    1. Antenna is a general-purpose antenna for UHF RFID applications with high gain and narrow beam.
    2. The antenna has a reading distance of 15-20 meters
    3. The antenna has superior mechanical properties, waterproof rating up to IP65, and the housing is reinforced for a variety of harsh environments.
    4. BRA-44 antenna can be conveniently applied to UHF band vehicle management, asset management and other applications.

    Performance Specifications

    Frequency Range902~928MHz
    VSWR≤1.3:1
    Gain12 dBic
    H side HPBW40°
    E side HPBW90°
    PolarizationLinear Polarization
    Relative humidity5%~95%
    Impedance50±1Ω
    Connector Type

    N Female


    Mechanical Specifications

    Size586mm×206mm×57mm
    Weight1.61kg
    MaterialABS+ aluminum parts
    Colorwhite
    Production ClassIP65
    Operating Temperature-40℃~+ 85℃
    Storage Temperature-40℃~+ 85℃

    12dBic Gain UHF RFID Linear Polarization Antenna For Vehicle Management

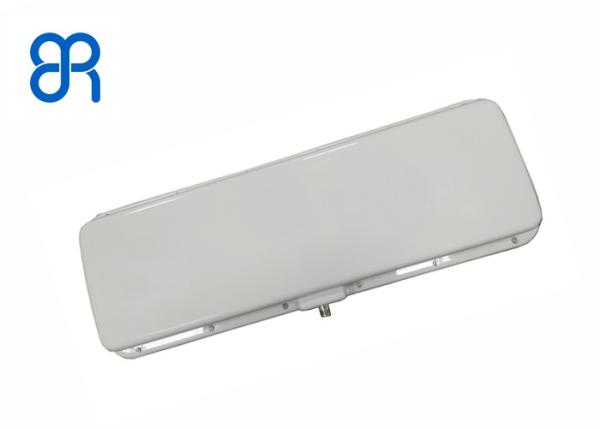

    Figure 1. Antenna Photo

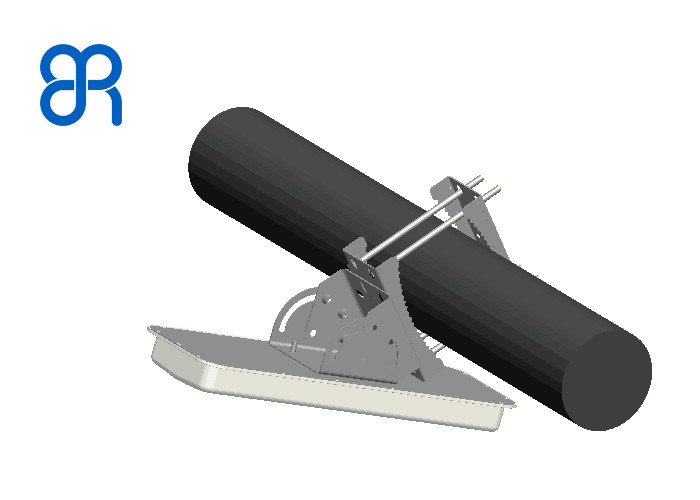

    Mounting

    The BRA-44 antenna can be mounted on the steel frame structure or pillar by its own bracket or user-fitted bracket, and connected to the reader through the coaxial cable. The antenna can be installed horizontally or vertically, depending on the mounting orientation of the bracket. After installation, the tilt angle of the antenna can be adjusted according to the actual situation.
    The antenna mount is an option and the customer can choose as needed.



    Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
