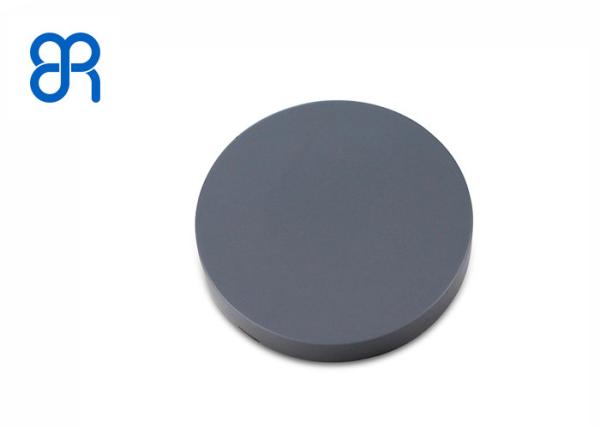

BRT-26 Underground Tag
As a leading global UHF RFID hardware solution provider, Broadradio
has more than 10 years of experience in RFID antenna and label
design. It has worked on RFID projects of various application types
and is familiar with how to select antennas, tags and readers to
obtain The optimal system integration effect has become a long-term
partner of many listed companies in the RFID industry.
Product Description:
BRT-26 is dedicated to the goods positioning. It has a good
performance of far reading distance, compressive and impact
resistance, high mechanical strength and easy to install,
especially suitable for a variety of tobacco tray positioning,
grain management, conveniently used in all the RFID positioning
management applications.
| Performance Features |
| Frequency range: | 920 - 925 MHz |
| Sensitivity: | Front-17dBm |
| Chip: | ALIEN H3 |
| Chip protocol: | EPC Class-1 Gen2 |
| Protocol supported: | ISO 18000-6C, EPC global C1Gen2 |
| Function: | Read / Write |
| Chip Features |
| E P C : | 96 Bits |
| Chip memory : | 512 User Bits |
| T I D: | 64 bits |
| Access password: | 32 bits |
| Kill password: | 32 bits |
| Anti-interference: | Strong |
| Data retention: | 10 years |
| Write endurance: | 10,000 cycle |
| Mechanical Features |
| Size: | 100mm*15mm(with adhesive) |
| Material of shell: | Ceramic |
| Color: | Black (or customized) |
| Weight: | 278g |
| Installation method: | buried in the ground and keep parallel to the floor |
| Protection class: | IP65 |
| Operating Temperature : | -40℃ to +250℃ |
| Applications |
| Tobacco management, food and other goods positioning management and
etc. |
Six advantages of RFID electronic tags:
1. Realize fast scanning
RFID electronic tag identification is accurate, and the
identification distance is flexible. It can identify and read
multiple tags at the same time. Without any object coverage, RFID
tags can perform penetrating communication and barrier-free
reading.
2. Large data memory capacity
The maximum capacity of RFID electronic tags is MegaBytes. In the
future, the amount of data and information that objects need to
carry will continue to increase, and the development of memory
carrier data capacity is also expanding according to the
corresponding needs of the market, and is currently in a steady
upward trend. The prospects are very impressive.
3. Anti-pollution ability and durability
RFID electronic tags are highly resistant to substances such as
water, oil and chemicals. In addition, RFID tags store data in the
chip, so it can effectively avoid damage and data loss.
4. Can be reused
RFID electronic tags have the function of repeatedly adding,
modifying, and deleting data stored in the RFID label, which
facilitates the replacement and update of information.
5. Small size and diversified shapes
RFID electronic tags are not limited by shape or size, so there is
no need to match the paper fixing and printing quality for reading
accuracy. In addition, RFID tags are also developing towards
miniaturization and diversification to be applicable to more
different products.
6. Security
The RFID electronic tag carries electronic information, and its
data content is protected by a password with strong security. The
content is not easy to be forged, altered, or stolen.
