Product Description:
BRC-05A Pro is a high-performance UHF intelligent top-mounted
access control system newly developed by Bowei. The product
supports ISO18000-6C protocol, the working frequency band supports
the national standard 920MHz ~ 925MHz, FCC 902MHz ~ 928MHz, the
output power is 0dBm ~ 33dBm optional; Built-in phased combination
antenna, aided by positioning algorithm can judge the direction of
label movement, accurately distinguish between the field and the
off-site label, anti-leakage reading and misreading performance is
good, with non-inductive trigger, identification distance,
multi-label recognition ability, strong anti-interference ability,
good scalability and easy installation and use. The structure can
be mounted on the top and side, and the installation height can
reach up to 5m; It can be widely used in clothing retailers, books
and archives management, personnel access management, fixed assets,
intelligent warehousing management and other fields.
Features:
- Product Name: RFID Portal Reader
- Weight: Approx. 7.5KG (without Support)
- Name: RFID Gate Reader,rfid Acrylic Gate Reader
- Frequency: UHF902MHz～928MHz
- Power Supply: AC 220V±10% 47～63 Hz
- Antenna: Phased Combination Antenna
- Independent intellectual property rights design, with LINUX system
- Supports the server mode for multi-channel control
- Supports the EPC C1 G2 (ISO18000-6C) protocol
- Operating frequency 902~928MHz (customizable 865~868MHz)
- Output power 33dbm (adjustable)

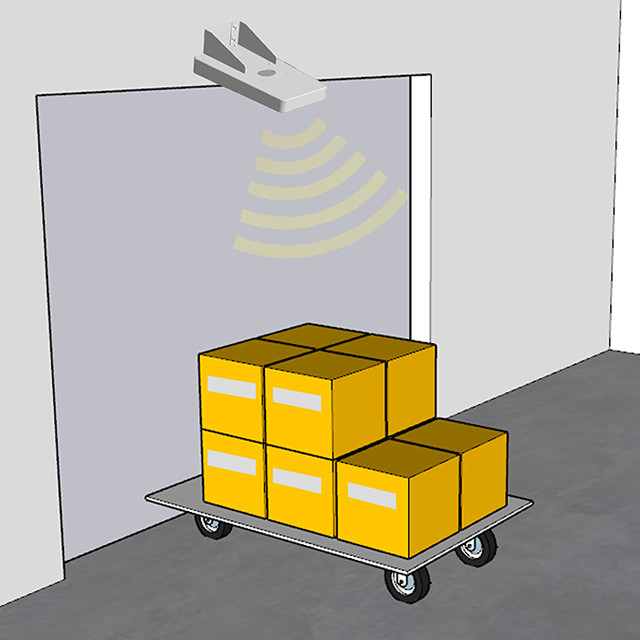

- built-in phased combination antenna, can judge the label moving
direction; The top mounting height is 3-5 meters, and the covering
channel width is 2.5 to 3 meters
- Strong multi-label reading ability, the missed read rate is less
than 1% in infrared triggered mode;
- supports offline data cache backup and online automatic upload to
ensure data reliability and security;
Technical Parameters:
| Parameters | Specification |
|---|
| Material | Aluminum +ABS |
| System | LINUX System |
| Name | RFID Gate Reader,rfid Acrylic Gate Reader |
| Interface | RS-232(DB9),RJ45 |
| Installation mode | Supports Ceiling, Ceiling And Wall Mount |
| Storage Temperature | -30℃～70℃ |
| Weight | Approx. 7.5KG (without Support) |
| Size | 440mm×210mm×40mm (without Support) |
| Humidity | 5%~95% |
| Power Consumption | Approx. 45W |
Applications:
RFID Portal Reader, model number BRC-05A Pro, is the perfect
solution for access control in various settings. This RFID entrance
reader is made of aluminum and ABS, and is designed to operate in
harsh environments with a humidity range of 5% to 95%. It supports
ISO18000-6C protocol and operates at UHF frequencies of 902MHz to
928MHz. This RFID gate reader is a reliable and durable access
control device with a standard export carton, foam and protective
film for secure packaging. It comes with an AC power supply of
220V±10% 47～63 Hz and can be ordered with a minimum quantity of one
piece. The RFID portal reader provides efficient access control and
is available at a competitive price of 980.
The RFID entrance reader is suitable for applications such as
access control, attendance management, personnel tracking, and
asset management. It is ideal for commercial and industrial use in
any setting and is an effective solution for security, safety, and
convenience. The RFID gate reader can be used in multiple locations
such as offices, factories, warehouses, and residential complexes.
This UHF RFID gate reader is a great choice for businesses that
need secure, reliable, and easy access control with a durable
product that is easy to install and maintain.
Support and Services:
RFID Portal Reader Technical Support and Service
At Bowei, we are committed to providing our customers with the best
technical support and service for our RFID Portal Reader products.
Our technical support team is available to answer any questions you
may have about our products and services.
Product Assistance
Our technical support staff is available to provide assistance with
your RFID Portal Reader products. We can help you set up,
configure, and troubleshoot your reader, as well as answer any
other questions you may have.
Software Support
We offer software support for our RFID Portal Readers. Our team can
help you install and configure the software, as well as provide
assistance with any software-related issues you may encounter.
Hardware Support
We also offer hardware support for our RFID Portal Readers. Our
team can help you diagnose and repair any hardware-related problems
you may be experiencing.
Customer Service
Our customer service team is available to answer any questions you
may have about your RFID Portal Reader products and services. We
can also assist you with placing orders, tracking shipments, and
scheduling repairs.
Packing and Shipping:
Packaging and Shipping for RFID Portal Reader
RFID Portal Reader is a durable and reliable product, and we take
great care in packaging and shipping it to our customers. Here's
what you can expect when you order:
Packaging
- RFID Portal Reader is packaged in a secure, padded box.
- The box is surrounded by foam to ensure that it is not damaged
during shipping.
Shipping
- RFID Portal Reader is shipped via a reliable, insured carrier.
- We offer standard and expedited shipping options.
- Tracking information is available for all orders.
FAQ:
- Q: What is RFID Portal Reader?
- A: RFID Portal Reader is a device which can identify and read RFID
tags from a distance. It can be used to track and manage assets in
warehouses, hospitals, and other sites.
- Q: What is the brand name of RFID Portal Reader?
- A: The brand name of RFID Portal Reader is Bowei.
- Q: What is the model number of RFID Portal Reader?
- A: The model number of RFID Portal Reader is BRC-05A Pro.
- Q: Where is RFID Portal Reader made?
- A: RFID Portal Reader is made in Shenzhen.
- Q: What is the minimum order quantity of RFID Portal Reader?
- A: The minimum order quantity of RFID Portal Reader is 1pcs.
