    Anti Theft Uhf Rfid Portal Reader With 9dBic Narrow Beam Antennas Inside

    Ask Lasest Price
    Brand Name : Broadradio
    Model Number : BRC-04L
    Price : Negotiable
    Payment Terms : T/T,PayPal
    Delivery Time : 3-5works
    • Product Details
    • Company Profile

    Anti Theft Uhf Rfid Portal Reader With 9dBic Narrow Beam Antennas Inside

    Anti-Theft Uhf Rfid Gate Reader High Performance Rfid Portal Reader UHF With 9dBic Narrow Beam Antennas Inside

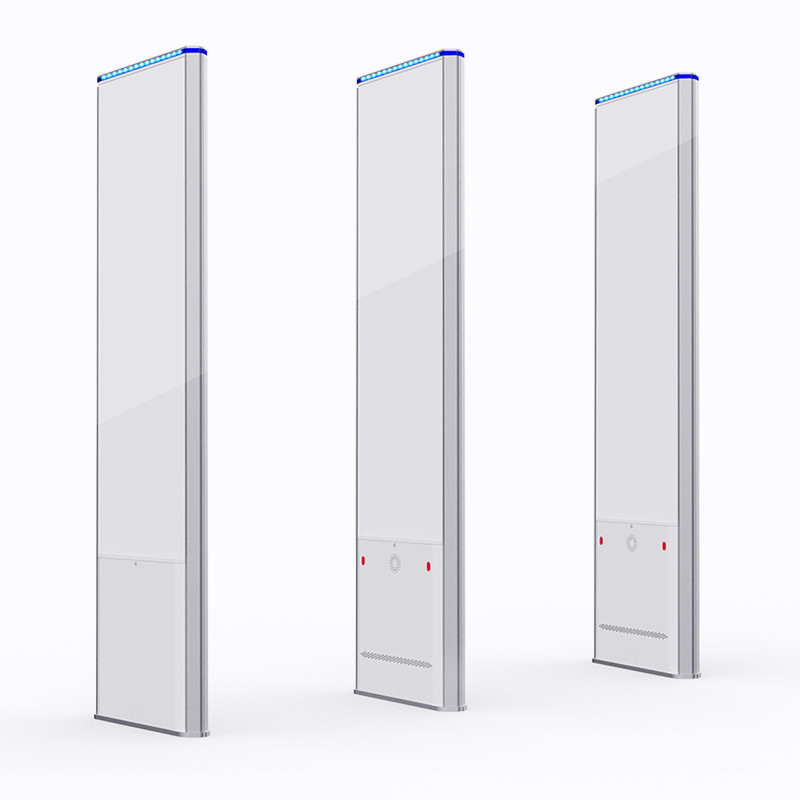

    BRC-04L UHF RFID Gate Reader Portal

    BRC-04L UHF RFID gate reader supports EPC C1G2 (ISO18000-6C) protocol. It supports multi-channel control functions, integrates high-gain antenna groups, high-speed readers. It also has good reading performance and great read and write area control capabilities. Standard RJ45 or RS232 interfaces is available for easy connection to the software platform. The product is particularly suitable for various types of logistics, warehousing, books, files, and personnel attendance management.

    Anti Theft Uhf Rfid Portal Reader With 9dBic Narrow Beam Antennas Inside


    Product Features
     Independent intellectual property design;
     Support server mode to achieve multi-channel control;
     Support EPC C1 G2(ISO18000-6C)protocol;
     Frequency 902~928MHz (or customized 865~868MHz);
     Output power 30dbm (adjustable);
     Good performance in multi- label reading, missing-read rate lower than 1% under Infrared trigger mode;
     Special designed antenna, horizontal narrow beam design, accurate access control area, no blind spot;
     Alarm Lamp and buzzer embedded, high sensitivity, safe and reliable;
     Wider RFID safe door placing distance, maximum 2.0m;

     Motion direction judgment optional (by infrared diode pair);
     LED display optional for showing label numbers;
     New label reading prompt function optional;
     Fashion appearance, easy assembly;
    Product Specifications
    Size:
    1450 × 370 × 75 mm (per piece)
    Weight:
    10 KG (per piece)
    Frequency:
    902 MHz ~ 928 MHz
    Protocol:ISO 18000-6C
    Operating Temperature:-20℃~60℃
    Storage Temperature:-30℃~70℃
    Ambient humidity:5%~95%RH, no condensation
    Power Supply:
    AC 220 V±10% 47 ~ 63 Hz
    Power Consumption:approx. 45W
    Communication
    Interface:
    RS-232(DB9),RJ45
    Recommended width per channel:0.8~1.5m(up to 2.2m)
    Access Control Components (N channels)
     Rack N+1 pcs (N channels)
     9dBic narrow beam antennas 4*N pcs
     Control panel and power module≥N/2 pcs
     Read-write module N pcs
     RS232 serial port N pcs
     Ethernet port N pcs
     Switch>N port
     RF feeder 4*N pcs
     Infrared radiation 2*N sets
     Infrared connector 2*N sets
    Applications
    Suitable for all kinds of logistics, warehouse, library, archives and personnel work attendance applications.
