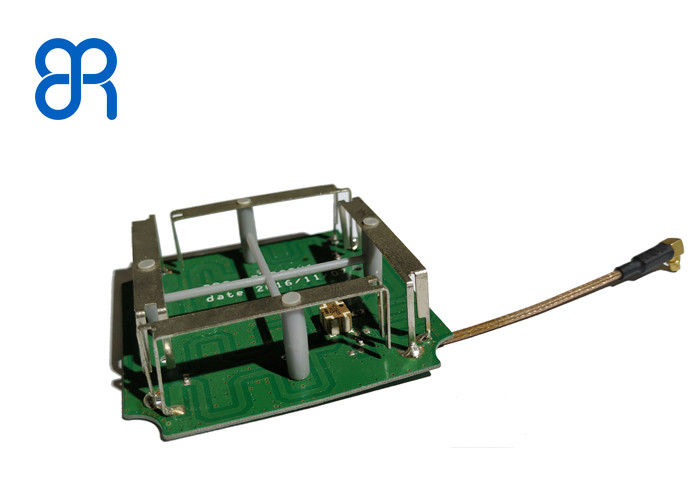

61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna

Shenzhen Bowei RFID Technology Co.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers

    Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers
    • Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers
    • Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers
    • Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers
    • Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers
    • Buy cheap 61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna from wholesalers

    61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna

    Ask Lasest Price
    Brand Name : Broadradio
    Model Number : BRA-07
    Price : Negotiable
    Payment Terms : T/T, PayPal
    Delivery Time : 3-5work days
    • Product Details
    • Company Profile

    61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna

    Introduction

    Broadradio implements the global business strategy, strengthens the development of the international market, increases interaction with customers and suppliers, responds to customer needs quickly and comprehensively, and establishes a more stable long-term partnership. At the same time, Broadradio implements forward-looking and characteristic solutions based on local conditions, and promotes Broadradio's intelligent products and services to be widely used in all walks of life, providing global users and partners with an overall RFID solutions that keeps pace with the times.

    Features

    Electrical Properties: It is a general antenna for terminal applications with high gain, miniaturization, low VSWR and etc.

    Mechanical Properties: small size and suitable for various severe environments.

    Applications

    BRA-07 Antenna is of convenient application in UHF RFID handheld reader and other terminal application fields.


    Performance Specifications

    Frequency Range860MHz~960MHz
    VSWR≤1.3:1
    Gain> 3 dBic
    PolarizationCircular Polarization
    Axial ratio<3 dB
    Relative humidity5%~95%
    Impedance50±1Ω
    Connector Type

    CMMX(IPEX optional)


    Mechanical Specifications

    Size61*61*16.3 mm
    Weight30g
    MaterialFR4, stainless steel
    ColorGreen
    IP ClassIP54
    Operating Temperature-40℃~+ 85℃
    Storage Temperature-40℃~+ 85℃

    61*61*16.3mm RFID Small Antenna with Gain 3dBic Circular Polarization Handheld RFID Reader Antenna

    Figure 1. Antenna pattern



    Figure 2. Antenna radiation pattern

    Core technology advantage

    1) Have complete RFID and testing equipment, including darkroom, network analyzer, label tester, comprehensive tester, etc.

    2) Master core technologies such as phase control technology, multi-beam phase control system, wide-band vibrator and multi-system design;

    3) Have rich application and project experience, have done RFID projects of various application types, and are familiar with how to choose antenna, label and reader products to get the best system integration effect.
