    2dBic RFID Ceramic Antenna UHF White With SMA Connector For Severe Environment

    Ask Lasest Price
    Brand Name : Broadradio
    Model Number : BRA-04
    Price : Negotiable
    Payment Terms : T/T, Paypal
    Delivery Time : 5-8works
    • Product Details
    • Company Profile

    2dBic RFID Ceramic Antenna UHF White With SMA Connector For Severe Environment

    Product Model

    BRA-04 Handheld Antenna

    Features

    Electrical Properties: It is for UHF RFID handheld terminal applications with normal gain and low VSWR.

    Mechanical Properties: small size and suitable for various severe environments.

    Applications

    BRA-04 Antenna is of convenient application in UHF RFID handheld terminals and other ternimal application fields.


    Performance Specifications

    Frequency range902MHz~928MHz
    VSWR≤1.3:1

    Gain

    >2dBic

    Polarization

    Circular Polarization

    Axial ratio

    <3dB

    Relative humidity5%~95%
    Impedance50±1Ω
    Connector type

    SMA (IPX optional)


    Mechanical Specifications

    Size50mm×50mm×8mm
    Weight35g
    Material

    Ceramic, F4B

    Color

    white

    Operating Temperature-40℃~+ 85℃
    Storage Temperature-40℃~+ 85℃

    2dBic RFID Ceramic Antenna UHF White With SMA Connector For Severe Environment

    Figure 1. Antenna Picture

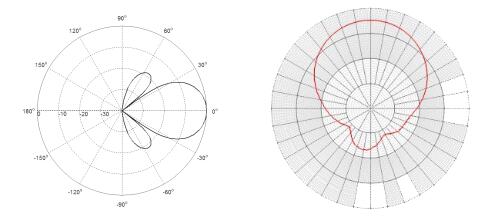

    Antenna radiation pattern


    BRA-04 Antenna Pattern and S Parameter


    Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
