Introduction
BRD-01LI is a UHF RFID reader with integrated 9dBic antenna. It is
full compatible with ISO18000-6C protocol. The working frequency
band covers CHN 920MHz～925MHz, FCC 902MHz ~ 928MHz and ETSI 865MHz
~ 868MHz. For the output power 0dBm ~ 33dBm is optional. It has the
advantages of high portability, long recognition distance, fast
reading speed, high accuracy, strong anti-interference ability,
excellent protection performance and easy to installation.
Compared with the traditional fixed reader, this reader device has
obvious advantages in terms of convenience and integration
efficiency, so that customers do not need to consider the
coordination of the reader and the antenna. It can be widely used
in many fields such as warehouse management, personnel management,
asset management, commercial retail and automatic vehicle
identification.
Features
Impinj E710 inside
Built-in embedded operating system, customizable and scalable,
convenient for customized development
supports multiple communication interfaces such as
RJ-45/RS-232/RS-485
Built-in 9dBi circular polarized antenna
Industrial, easy-to-install I/O port connectors
Special application project custom interface / data transmission
can be extended
Applications
Intelligent Vehicle Management such as vehicle access control
management, parking lots, and automatic vehicle weighing industry.
Production automation, visualization management.
Logistics industry such as container management, pallet
management.
Electronic tickets and personnel access control.
Asset access management.
Main Technical Performance Indicators
| Model | BRD-01LI |
| Hardware, OS and Firmware Management |
| Processor | ARM Cortex-M3 108MHz |
| Storage | Flash 128KB |
| Firmware upgrade | Demo software/Remote upgrade |
| SDK | Windows platform– .Net / .Net core / C++ / Java SDK |
| Physical Parameters |
| Sizes | 258mm(L)*258mm(W)*36mm(H) |
| Weights | 1.2KG |
| Housing material | Aluminum+ABS |
| RFID |
| Chip | Impinj Indy E710 |
| Air protocol | ISO/IEC 18000-6B, 6C/EPC C1Gen2 |
| Frequency | CHN: 920MHz～925MHz, 840MHz～845MHz |
| FCC: 902MHz～928MHz |
| ETSI: 865MHz～868MHz |
| Built-in antenna | Circular polarization 9dBi, VSWR≤1.3:1 |
| Output power | 33dBm±1 dBm |
| Channel bandwidth | ＜200KHz |
| Frequency stability | ≤±10ppm |
| Reading range | 0m～30m (related to factors such as transmit power, antenna type,
tag type and application environment) |
| Write distance | 0m～15m (related to factors such as transmit power, antenna type,
tag type and application environment) |
| Label recognition speed | ＞800times/second |
| Features | Support RSSI/support multiple tags/intensive reading and
writing/online upgrade/tag data filtering |
| Operating mode | Fixed frequency/frequency hopping selectable |
| Connection |
| Communication interface | RJ45, RS-232, RS-485, Wiegand 26/34/66 |
| I/O interface | 1 input, 1 12V, 2 5V output |
| Power supply | DC 12V/3.33A |
| Environmental Parameters |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -40℃～+85℃ |
| Operating humidity | 5%RH～95%RH (non-condensing) |
| Protection class | IP65 |
Interface Signal Definition
1. Black 4pin terminal
| Terminal No. | Signal Name | Signal Definition |
| 1 | IN | External Input(5-24V) |
| 2 | B | RS-485 Negative |
| 3 | A | RS-485 Positive |
| 4 | GND | Ground |
2.Red 4pin terminal
| Terminal No. | Signal Name | Signal Definition |
| 1 | D1 | Wiegand 1 |
 2 | D0 | Wiegand 0 |
| 3 | OUT | Output(12V) |
| 4 | GND | Ground |

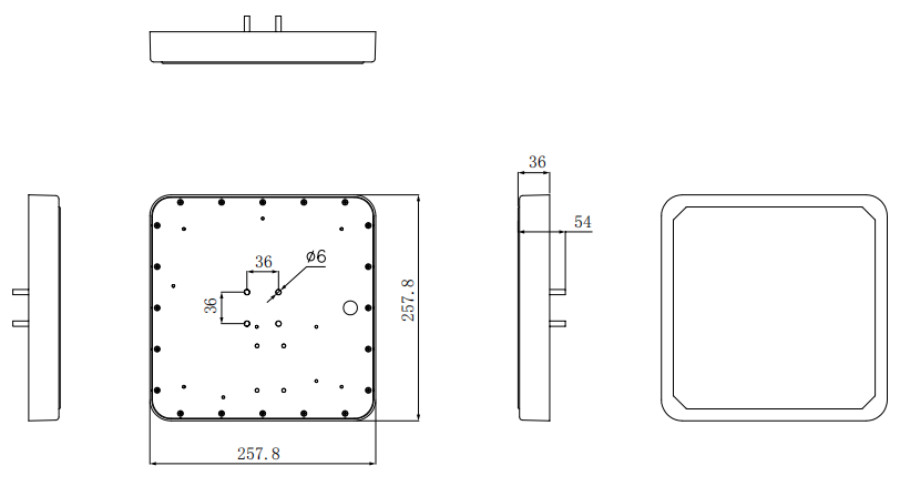

Dimensions
